Lionpak^® 5100

• Excellent chemical resistance across an exceptionally wide temperature range
• Replaces moulded graphite sealing rings
• Flexible and compressible
• Easy to install - no special tools needed
• Reduces stockholding requirements

High speed rotary pumps handling water or slurry in pulp and paper processing. Also a general purpose valve stem packing for steam and chemical processing duties.

Valve Stem Duties

• Maximum operating temperatures:
  • Steam: +550°C (+1022°F)
  • Oxidising conditions: +450°C (+842°F)
  • Non-oxidising conditions: +850°C (+1562°F)
• Minimum operating temperature: -200°C (-328°F)
• Maximum system pressure: 25 MPa/250 bar (3626 psi)

Centrifugal Pumps and Rotary Equipment

• Maximum operating temperatures:
  • Steam: +550°C (+1022°F)
  • Oxidising conditions: +450°C (+842°F)
  • Non-oxidising conditions: +850°C (+1562°F)
• Minimum operating temperature: -200°C (-328°F)
• Maximum system pressure: 2.5 MPa/25 bar (363 psi)
• Maximum shaft speed: 25 m/s (4921 fpm)

Compatible with media in the range pH 0-14, excluding strong oxidising agents. Negligible volatile content. Low in extractable trace impurities such as chloride and sulphur.

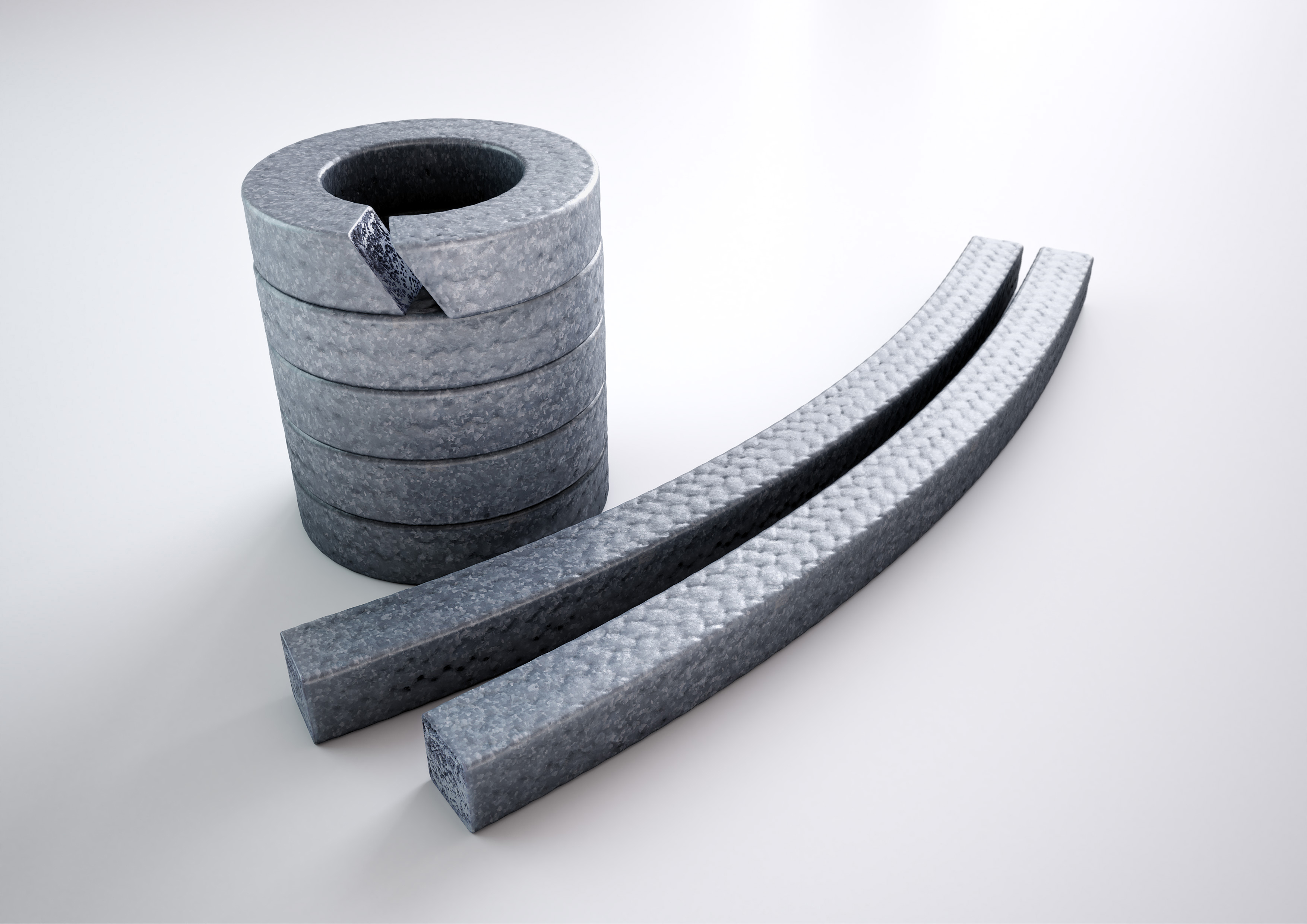

• All popular square sections from 3 mm (¹/₈") upwards, in boxes containing 8 m (26' 3"), in coil form or on spools as detailed in the product datasheet
• Also supplied as split preformed rings and sets
• Please refer to the product datasheet for spool ordering information
